HBR-IO

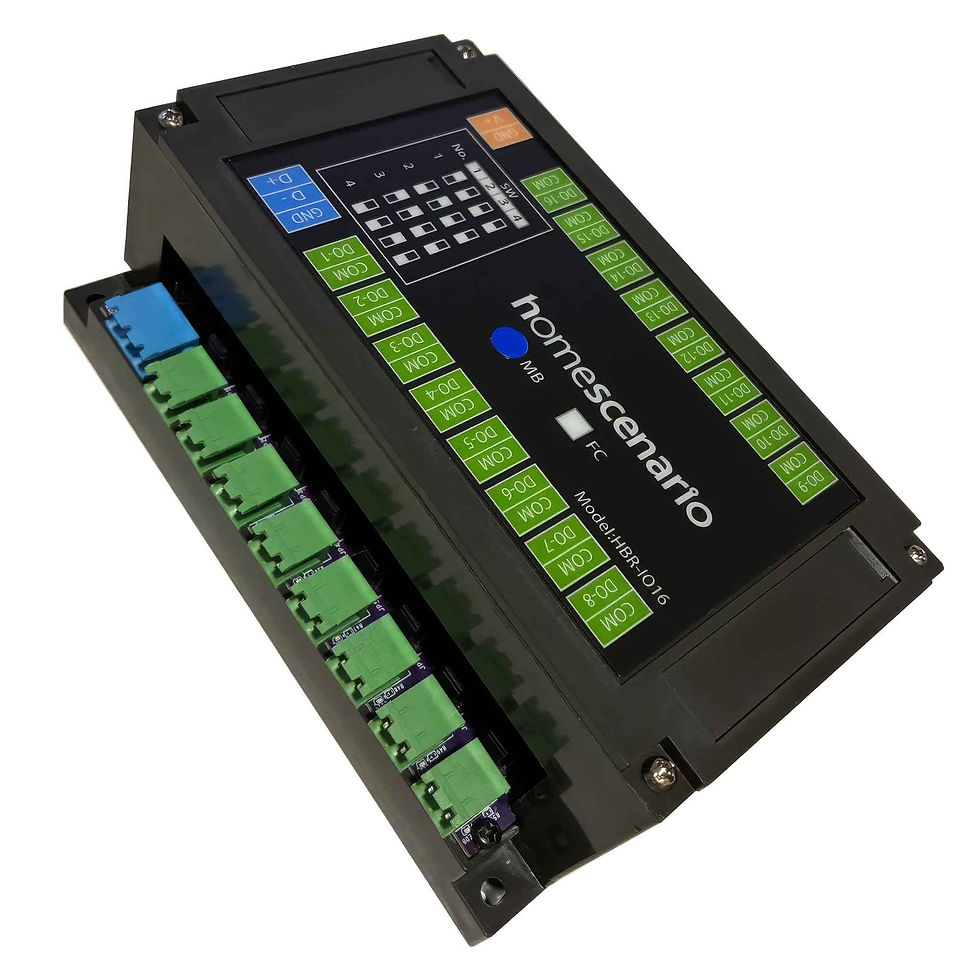

Elevator Floor I/O Module
The HBR-IO is a relay-based elevator floor I/O module designed to extend elevator access control capabilities in smart building systems. Working with RFID access controllers, the HBR-IO provides multiple relay outputs to manage elevator floor permissions efficiently.
The module communicates through RS-485 / Modbus protocol and supports 16 relay outputs, making it ideal for high-rise buildings requiring scalable elevator floor control.
Product Highlights:
RS-485 / Modbus communication
16 relay output channels
Supports NO / NC relay configuration
Designed for elevator floor control
Works with RFID access controllers
Industrial metal enclosure for reliable operation
Product Overview
The HBR-IO Elevator Floor I/O Module is designed to support elevator floor control in smart building access systems.
The module communicates with RFID access controllers through RS-485 Modbus protocol, enabling elevator floors to be controlled based on user access permissions. It provides 16 relay output channels, which can be configured as normally open (NO) or normally closed (NC) via jumper settings.
When integrated with access controllers and the building management platform developed by HomeScenario, the HBR-IO allows administrators to implement secure and flexible elevator floor access control for residential, commercial, and mixed-use buildings.
The module is typically installed inside elevator control cabinets and can be deployed with multiple units to support high-rise building requirements.
Key Features
16 Relay Output Channels
The module provides 16 independent relay outputs for controlling elevator floor access signals.
RS-485 / Modbus Communication
Uses reliable RS-485 Modbus-RTU protocol to communicate with RFID access controllers and elevator systems.
Flexible Relay Configuration
Each relay can be configured as normally open (NO) or normally closed (NC) using jumper settings.
Designed for Elevator Integration
Optimized for elevator floor control systems, allowing flexible floor access management.
Industrial Metal Enclosure
Installed in a durable metal box to ensure reliable operation within elevator control environments.
HBR-IO
Elevator Floor I/O Module
System Integration
The HBR-IO is used as part of the smart building access control platform and works together with multiple building systems.
Integrated systems include:
RFID access controllers
elevator control systems
building management servers
access control software
smart building automation systems
When combined with access controllers and centralized management software, the module allows building administrators to manage elevator floor permissions efficiently.
Applications
Residential High-Rise Buildings
Control resident access to authorized floors.
Commercial Office Buildings
Restrict employee access to specific departments or office levels.
Hotels & Serviced Apartments
Ensure guests can only access their assigned floors.
Mixed-Use Developments
Separate access permissions between residential, commercial, and parking levels.
Secure Facilities
Protect restricted areas such as data centers or equipment floors.
Product Specifications
Model | HBR-IO | Power Consumption | 8W |
Product Type | Elevator Floor I/O Module | LED Indicators | Power, Send/Receive, Relay |
Communication | RS-485 | Operating Temperature | 0°C – 45°C |
Protocol | Modbus-RTU (N, 8, 1) | Storage Temperature | -20°C – 60°C |
Baud Rate | 9,600 bps | Humidity | 10% – 85% Non-Condensing |
Relay Outputs | 16 Channels | Installation | Metal Box |
Relay Type | Form C, Independent COM | Protection | Indoor |
Relay Configuration | NC / NO via jumper | Dimension | 180 × 231 × 62 mm |
Relay Rating | 110V / 0.6A ; 24V / 2A | Weight | 1,780 g |
Power Supply | 9 – 24V DC |
Compatible Products:
The HBR-IO module works with the HomeScenario smart building ecosystem, including:
RFID access controllers
elevator floor controllers
building management servers
smart building access management software
Multiple HBR-IO modules can be deployed with access controllers to support high-rise building elevator systems.
