(Images shown are for illustration purposes only)

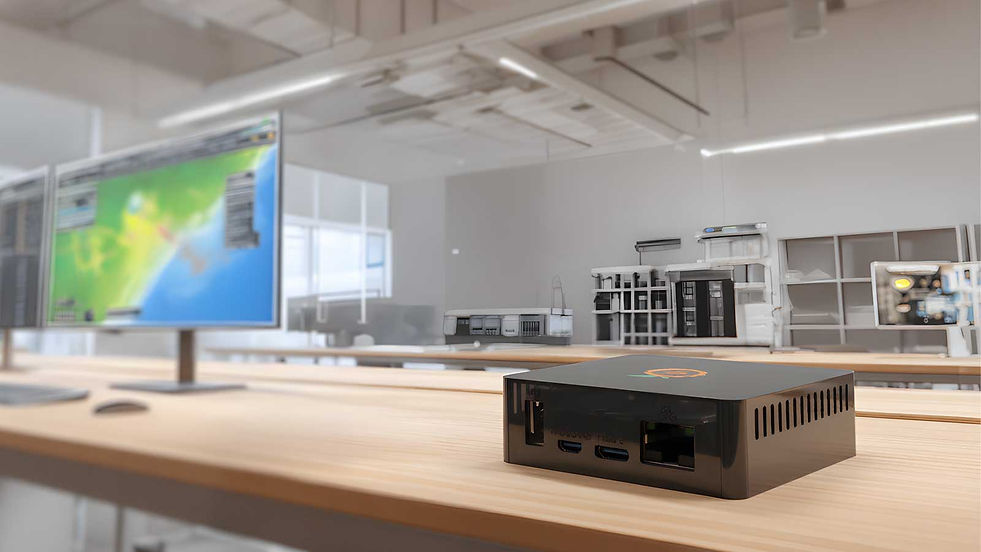

HBI-VS
IP Intercom Video Server
Integrating CCTV Video Monitoring with IP Intercom Indoor Panels
The HBI-VS is a compact IP intercom video server that enables CCTV and IP camera video streams to be viewed directly on HomeScenario indoor touch panels. By connecting to IP cameras, DVRs, or NVR systems within the intranet, the HBI-VS allows residents or building users to monitor public areas in real time through the intercom interface.
Designed for smart building environments, the HBI-VS seamlessly integrates video surveillance with the IP intercom system, providing convenient visual monitoring from indoor panels.
Product Overview
The HBI-VS IP Intercom Video Server bridges video surveillance systems with the HomeScenario IP intercom platform. It enables video streams from IP cameras, DVRs, or NVR systems to be transmitted and displayed on indoor intercom touch panels.
With support for multiple video channels, the HBI-VS allows users to select and monitor different cameras across the building network, enhancing situational awareness and security. This integration provides residents and building operators with convenient access to public camera feeds without needing separate monitoring systems.
The compact design and flexible integration make the HBI-VS ideal for residential communities, office buildings, hotels, and smart building environments.
Key Features
IP Camera Integration
Connects video streams from IP cameras, DVRs, or NVR systems within the building network.
Multi-Channel Video Support
Supports up to 4/8-channel video streaming, allowing multiple cameras to be monitored through the intercom system. (Note: The system supports selected brands of IP cameras, DVRs, and NVRs. Project-based integration may require additional specification review and confirmation.)
Indoor Panel Camera Monitoring
HomeScenario indoor touch panels can select specific camera channels and view real-time video feeds.
CCTV System Integration
Bridges traditional CCTV infrastructure with modern IP intercom systems for unified monitoring.
Compact Embedded Hardware
Small and efficient embedded hardware design suitable for installation in server rooms, network cabinets, or building control centers.
Flexible Deployment
Compatible with different building network environments and security infrastructures.
HBI-VS
IP Intercom Video Server
System Integration
The HBI-VS integrates video surveillance with the HomeScenario IP intercom platform.
Integrated systems include:
HomeScenario IP Intercom Indoor Touch Panels
IP Cameras
Network DVR Systems
Network Video Recorders (NVR)
Building Network Infrastructure
Smart Building Management Systems
This integration allows video surveillance streams to be viewed directly from indoor intercom panels, improving convenience and security.
Applications
Residential Communities
Residents can monitor public areas such as entrances, parking areas, and lobbies directly from indoor intercom panels.
Apartment Buildings
Improves building security by allowing occupants to view shared surveillance cameras from their indoor units.
Commercial Buildings
Employees and security staff can monitor office entrances, corridors, and parking areas.
Hotels & Hospitality
Allows staff and guests to view public facility cameras through intercom panels.
Smart Buildings
Integrates surveillance video streams into the building’s centralized communication and control platform.
Product Specifications
CPU | ARM Cortex-A53 1.5GHz Quad-Core | RTC | Supported with Battery Holder |
Memory | 1GB DDR3 | Video Output | Micro HDMI |
Storage | 8GB Flash | USB | USB 2.0 Host |
SD Card | Supported | Operating Temperature | 0°C to 45°C |
Operating System | Android / Linux | Storage Temperature | -20°C to 60°C |
Power | 5V / 3A | Humidity | 10% – 85% Non-Condensing |
Network | RJ-45 Gigabit Ethernet | Dimension | 66 × 58 × 25 mm |
Compatible Products:
The HBI-VS works with the following HomeScenario and surveillance components:
HomeScenario Indoor Touch Panels
IP Intercom Door Stations
IP Cameras
Network DVR Systems
Network Video Recorders (NVR)
HomeScenario Smart Building Management Servers
Available models:
HBI-VS-1 – IP Intercom Video Server (1 Channel)
HBI-VS-4 – IP Intercom Video Server (4 Channels)
FAQs:
Q: What is the purpose of the HBI-VS video server?
A: The HBI-VS allows CCTV or IP camera video streams to be viewed directly on HomeScenario indoor intercom panels, integrating surveillance with the intercom system.
Q: What video sources can the HBI-VS connect to?
A: The server supports video streams from IP cameras, network DVR systems, and NVR devices within the building intranet.
Q: How many camera channels does the HBI-VS support?
A: The system is available in 1-channel and 4-channel models, depending on the installation requirements.
Q: Can residents select which camera to view?
A: Yes. Indoor touch panels can select and switch between available camera channels for real-time monitoring.
Q: Does the system support all IP camera brands?
A: The HBI-VS supports selected brands of IP cameras, DVRs, and NVRs. Integration with additional brands may require project-based evaluation.
