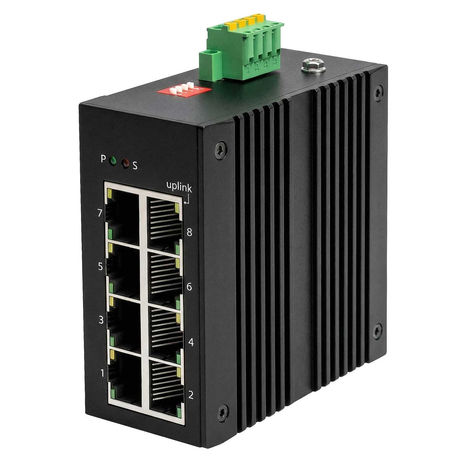

HBI-DNS-0800
Industrial 10/100M Edge Switch (8-Port)
Reliable Industrial Network Connectivity for Smart Buildings
The HBI-DNS-0800 is an industrial-grade unmanaged Ethernet edge switch with 8× 10/100Mbps ports, designed for stable and reliable network connectivity in demanding environments. With wide temperature support, redundant power input, and surge protection, it ensures continuous operation for critical infrastructure in smart building and industrial systems.
Product Overview
The HBI-DNS-0800 Industrial Edge Switch is designed to provide robust network connectivity for HomeScenario smart building and AIoT systems. Featuring 8 Fast Ethernet ports, the switch enables efficient communication between IP-based devices such as intercom stations, access controllers, surveillance cameras, and IoT sensors.
Built with industrial-grade components, the switch supports fanless IP40 metal housing, DIN-rail mounting, wide operating temperature (-20°C to 75°C), and redundant power input for mission-critical deployments. It also offers DIP-switch configuration for VLAN isolation, QoS prioritization, and broadcast storm control, enabling quick and easy setup without complex software configuration.
The HBI-DNS-0800 is ideal for smart building networks, industrial automation, transportation systems, and security infrastructure requiring reliable and stable Ethernet connectivity.
Key Features
Industrial-Grade Network Switch
8 × 10/100Mbps Fast Ethernet ports
Designed for reliable edge networking in industrial and smart building environments
Flexible Network Configuration
DIP switch configuration for easy setup
VLAN port isolation for improved network security
Flow control for optimized traffic management
QoS support (Port 1 & 2) for prioritized communication
Broadcast storm suppression to maintain network stability
Reliable Power Design
Dual redundant power inputs
Wide voltage input range 12–57VDC
Reverse polarity and over-voltage protection
Robust Industrial Design
Fanless IP40 metal housing
DIN-rail mounting for industrial cabinets
Supports harsh environments (-20°C to 75°C)
High Reliability Network Performance
Switching capacity: 1.6Gbps
Packet forwarding rate: 2.38Mpps
Supports 10K jumbo frames
ESD protection: Air 15KV / Contact 8KV
Surge protection up to 4KV
HBI-DNS-0800
Industrial 10/100M Edge Switch (8-Port)
System Integration
The HBI-DNS-0800 serves as a reliable network edge device that connects multiple IP devices within the HomeScenario smart building ecosystem.
It provides Ethernet connectivity for:
SIP/IP video intercom devices
Access control systems
IP surveillance cameras
Alarm and safety devices
Smart home controllers
Property management systems
By ensuring stable and protected network communication, the switch enhances the reliability of the entire smart building infrastructure.
Applications
Smart Buildings
Connect intercom systems, access controllers, and surveillance cameras across residential and commercial properties.
Industrial Automation
Reliable Ethernet switching for factory monitoring systems and automation equipment.
Transportation Infrastructure
Network connectivity for surveillance and communication systems in stations and terminals.
Education & Campus Networks
Connect security devices and campus infrastructure in schools and universities.
Government & Public Facilities
Ensure stable network communication for public safety and monitoring systems.
Product Specifications
Model | HBI-DNS-0800 | Connector | Removable 4-pin terminal block |
Ethernet Ports | 8 × 10/100M RJ45 | Surge Protection | 4KV |
Ethernet Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az | ESD Protection | Air 15KV / Contact 8KV |
Switching Capacity | 1.6Gbps | Protection Rating | IP40 |
Packet Forwarding Rate | 2.38Mpps | Installation | DIN-Rail |
MAC Address Table | 2K | Operating Temperature | -20°C ~ 75°C |
VLAN | 2K | Storage Temperature | -40°C ~ 85°C |
Jumbo Frame | 10K Bytes | Humidity | 5%–95% (non-condensing) |
Forwarding Delay | <100µs | Dimensions | 48 × 98 × 98 mm |
QoS | Port 1–2 | Weight | 0.58 kg |
Power Input | 12–57VDC redundant power inputs | Certification | CE / FCC / RoHS |
Max Power Consumption | ≤4W | Warranty | 2 Years |
Compatible Products:
The HBI-DNS-0800 can be integrated with various HomeScenario AIoT and smart building solutions, including:
SIP/IP Intercom Systems
Indoor Touch Panels
Multi Access Control Systems
Video Surveillance Systems
Alarm and Security Devices
Smart Building IoT Controllers
Property Management Systems
FAQs:
Q: What is the HBI-DNS-0800 used for?
A: The HBI-DNS-0800 is an industrial Ethernet edge switch used to connect multiple IP devices such as intercom systems, access control devices, cameras, and IoT sensors within a smart building or industrial network.
Q: Is the switch managed or unmanaged?
A: The HBI-DNS-0800 is an unmanaged switch, allowing simple deployment with DIP switch configuration for basic network control features.
Q: What environments is the switch designed for?
A: It is designed for industrial and harsh environments, supporting -20°C to 75°C operating temperatures with surge and ESD protection.
Q: Does the switch support redundant power?
A: Yes. The switch supports dual redundant power inputs, ensuring continuous operation in critical systems.
Q: How is the switch installed?
A: The switch supports DIN-rail mounting, making it suitable for installation in industrial cabinets and control panels.
