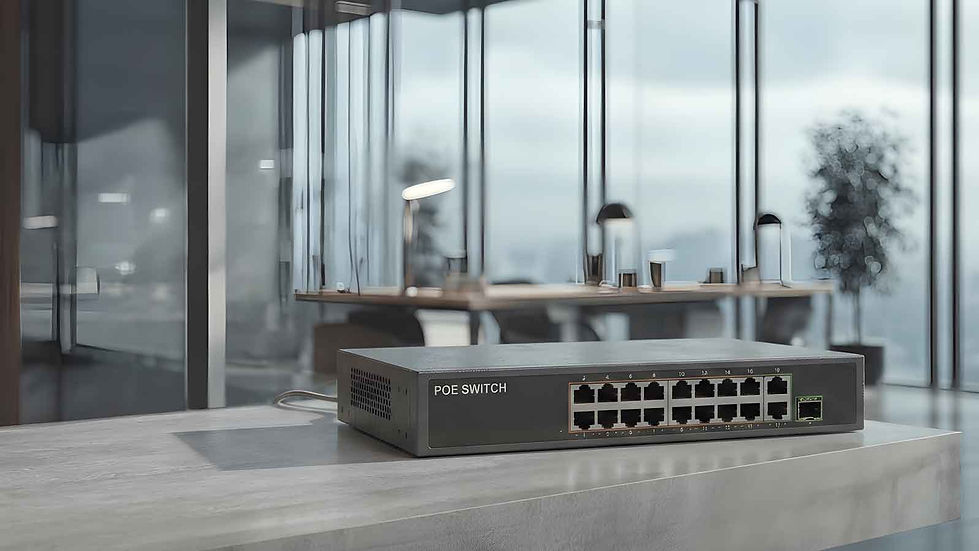

HBI-DPS-1612
Edge PoE Switch (16x 10/100M PoE + 2x Gigabit LAN + 1x Gigabit SFP)
Reliable High-Density Edge PoE Connectivity
The HBI-DPS-1612 is a high-performance unmanaged edge PoE switch designed for stable and efficient network deployment in smart buildings, surveillance systems, transportation, industrial environments, and commercial applications. Equipped with 16 Fast Ethernet PoE ports, dual Gigabit uplink ports, and one Gigabit SFP fiber uplink, it delivers flexible connectivity for expanding edge networks.
Supporting IEEE 802.3af/at PoE standards with up to 30W PoE+ output per port and a total PoE budget of 230W, the HBI-DPS-1612 simplifies IP camera, wireless AP, and IoT device installations while reducing cabling complexity and deployment costs.
Its compact 1U design, plug-and-play operation, and long-distance PoE transmission capability up to 250 meters make it an ideal solution for high-density edge aggregation environments.
Product Overview
The HBI-DPS-1612 is an unmanaged desktop edge PoE switch designed to provide reliable power and data connectivity for modern IP-based infrastructures. Featuring 16x 10/100Mbps PoE ports, 2x Gigabit RJ-45 uplink ports, and 1x Gigabit SFP fiber uplink, it enables flexible network expansion and stable high-speed uplink connectivity.
Built with a non-blocking switching architecture and wire-speed throughput performance, the switch ensures smooth transmission for surveillance video, voice, and data traffic across connected devices.
The HBI-DPS-1612 supports automatic PoE detection and protection, allowing only compliant powered devices to receive power while safeguarding non-PoE devices from damage. With green energy-saving technology and easy plug-and-play deployment, it is suitable for a wide range of edge networking applications.
Key Features
16-Port PoE+ Connectivity
Supports IEEE 802.3af/at PoE standards with up to 30W output per port for powering IP cameras, wireless access points, VoIP phones, and IoT devices.
Flexible Gigabit Uplink Options
Includes 2x Gigabit RJ-45 uplink ports and 1x Gigabit SFP fiber uplink for high-speed backbone connectivity and long-distance network deployment.
Long-Distance PoE Transmission
Supports up to 250-meter PoE transmission distance on ports 1–8, ideal for extended surveillance and remote edge installations.
Non-Blocking Switching Performance
Provides stable wire-speed forwarding performance with store-and-forward architecture and efficient traffic handling.
Plug-and-Play Simplicity
Unmanaged design allows easy deployment without software configuration or network management complexity.
Intelligent PoE Protection
Automatically detects PoE devices and protects non-PoE equipment from accidental power delivery.
Compact 1U Design
Space-saving desktop and rack-friendly form factor suitable for edge cabinets and compact installations.
Energy-Efficient Operation
Built-in green technology helps reduce power consumption while maintaining reliable network performance.
HBI-DPS-1612
Edge PoE Switch (16x 10/100M PoE + 2x Gigabit LAN + 1x Gigabit SFP)
System Integration
Smart Surveillance Systems
Integrates seamlessly with IP cameras, NVRs, and monitoring systems for centralized security deployments.
Smart Building Infrastructure
Supports IoT sensors, access control systems, intercoms, and automation devices in commercial and residential environments.
Wireless Network Expansion
Provides stable PoE connectivity for wireless access points in offices, campuses, and public spaces.
Transportation and Industrial Networks
Suitable for edge deployments in transportation hubs, factories, warehouses, and industrial automation systems.
Fiber Backbone Integration
The built-in SFP uplink enables long-distance fiber connectivity to core switches and centralized network infrastructure.
Applications
Smart Surveillance
Provides stable PoE connectivity for large-scale IP camera deployments in commercial buildings, factories, and public facilities.
Smart Office Networks
Supports VoIP phones, wireless APs, and connected office devices with simplified single-cable deployment.
Smart Residential Solutions
Ideal for apartment buildings, gated communities, and residential security systems.
Education Campuses
Enables efficient network connectivity for classrooms, dormitories, and campus surveillance systems.
Transportation Infrastructure
Suitable for train stations, parking facilities, traffic monitoring, and transportation management systems.
Industrial Automation
Supports industrial IoT deployments and edge communication systems in manufacturing environments.
Product Specifications
Model | HBI-DPS-1612 | MAC Address Table | 8K |
PoE Ports | 16x 10/100Base-TX RJ-45 | Jumbo Frame | 9K Bytes |
Gigabit Uplink Ports | 2x 10/100/1000Mbps RJ-45 | Transmission Distance | Up to 250m (Ports 1–8) |
SFP Ports | 1x 1000Base-SX/LX SFP | Flow Control | IEEE 802.3x |
PoE Standard | IEEE 802.3af/at | Power Input | 100~160V AC, 50–60Hz |
Max. PoE Output | 30W per port | Power Consumption | 250W Max |
PoE Budget | 230W | Dimensions | 295 x 165 x 44 mm |
PoE Type | End-Span | Weight | 2kg |
Switching Architecture | Store-and-Forward | Operating Temperature | 0°C ~ 50°C |
Switching Fabric | 52Gbps | Storage Temperature | -10°C ~ 70°C |
Throughput | 5.36Mpps |
Compatible Products:
IP Surveillance Devices:
IP Cameras
NVR Systems
Video Management Platforms
Wireless Networking Devices:
Wi-Fi Access Points
Mesh Networking Devices
Wireless Bridges
Smart Building Solutions:
Access Control Systems
Smart Intercoms
IoT Sensors
Smart Controllers
Network Infrastructure:
Core Switches
Fiber Backbone Networks
Enterprise Routers
Cloud Management Platforms
FAQs:
Q: What PoE standard does the HBI-DPS-1612 support?
A: The HBI-DPS-1612 supports IEEE 802.3af and IEEE 802.3at PoE standards with up to 30W power output per port.
Q: How many PoE devices can the switch support simultaneously?
A: The switch provides a total PoE budget of 230W and can support up to 15 Class 3 powered devices simultaneously.
Q: Does the switch require configuration?
A: No. The HBI-DPS-1612 features an unmanaged plug-and-play design that requires no software configuration.
Q: What is the maximum PoE transmission distance?
A: Ports 1–8 support extended PoE transmission distance up to 250 meters.
Q: Can the switch connect to fiber networks?
A: Yes. The switch includes one Gigabit SFP uplink slot for fiber backbone connectivity.
Q: What applications is this switch suitable for?
A: The HBI-DPS-1612 is ideal for surveillance systems, smart buildings, wireless networking, industrial environments, transportation infrastructure, and IoT deployments.
Q: Does the switch protect non-PoE devices?
A: Yes. The switch automatically detects PoE-compatible devices and protects non-PoE equipment from accidental power delivery.
